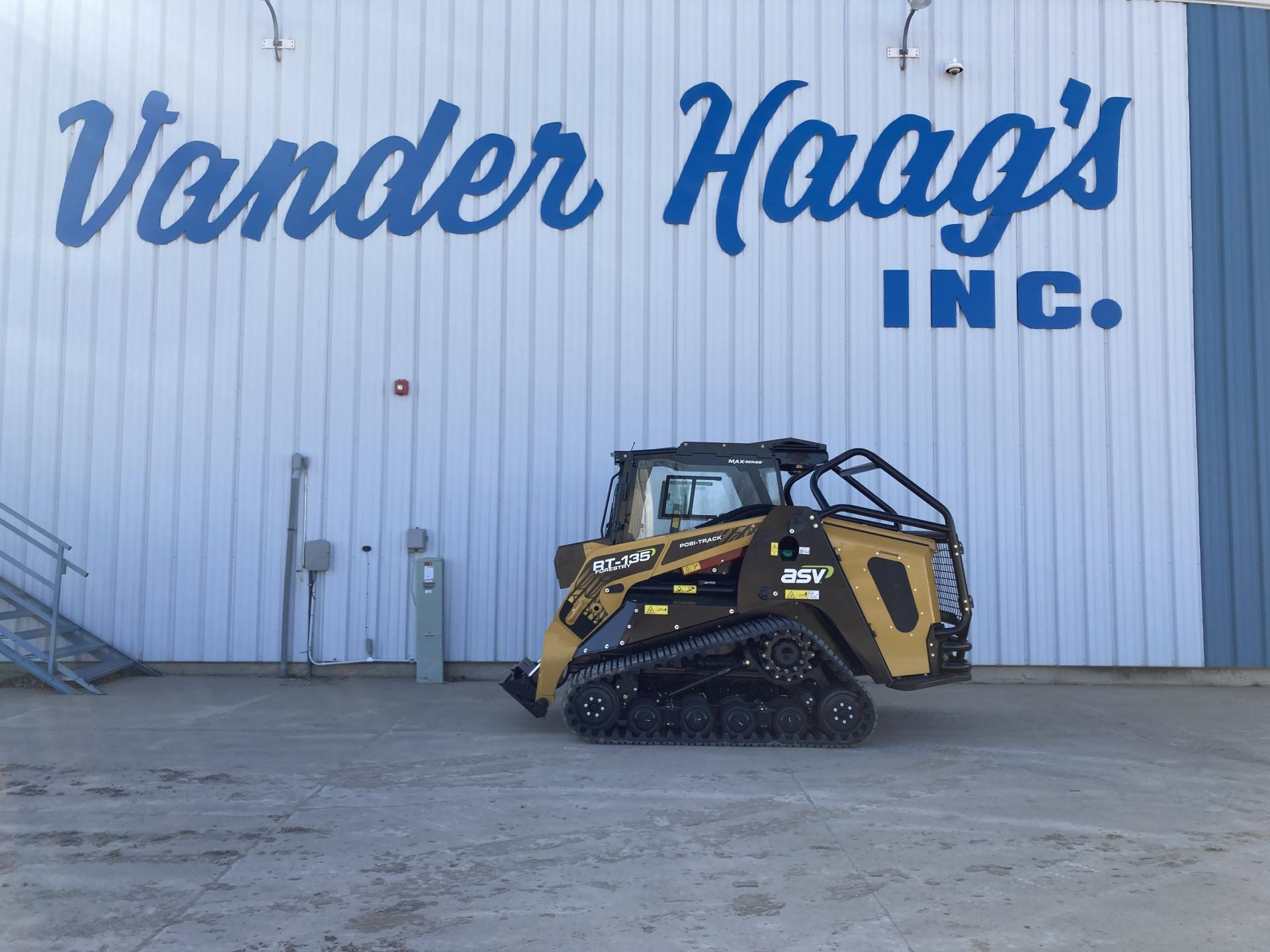

2023 ASV RT135 Forestry Equipment Unit: Skid Steer

RT-135 FORESTRY

OPERATIONS
Loader Arms Radial
Operating Weight12990 lbs
Rated Operating Capacity @ 35%4150 lbs
Rated Operating Capacity @ 50%5929 lbs
Ground Pressure4.6 psi
Engine Power132 hp
Tipping Load11858 lbs
Travel Speed, Maximum - 1st Speed6 mph
Travel Speed, Maximum - 2nd Speed10 mph

ENGINE
Type Diesel 4-cylinder, turbo charged
Model Cummins QSF3.8
Cooling System Temperature-controlled, variable speed and operator time-selectable, hydraulically-driven, auto-reversing fan and coolant/anti-freeze-filled radiator
Intake Air Cleaner Three-stage
Emission Controls Meets all U.S. Epa Tier 4 final standards
Standard Feature Auto Idle
Engine Power132 hp
Gross Power Rating132 hp
Torque Peak360 ft-lb

DRIVE TRAIN
Track Type General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads.
Drive System Two hydrostatic direct drive sprockets controlled by a single joystick
Track Drive Sprocket Elevated with low friction, replaceable sprocket rollers
Undercarriage suspension Two independent torsion axles per undercarriage
Roller Wheels 24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Track Width20 in
Length of Track on the Ground71 in
Ground Contact Area2840 in2
Roller Wheel Diameter Front & rear wheels15 in
Roller Wheel Diameter Middle Wheel10 in

AUXILIARY HYDRAULIC
Controls Intermittent via joystick button or continuous via console switch. High-flow is adjustable and loader/auxiliary sharing is adjustable via machine display
Couplers Push-to-connect quick couplers mounted on loader arms. Pressure relief valve on coupler block
Cooling System High efficiency side-by-side radiator and oil cooler
Pump Capacity Low20 gpm
Pump Capacity High50 gpm
System Pressure Max Low3300 psi
System Pressure Max High4060 psi

ELECTRICAL SYSTEM
Standard Features Attachment control kit, block heater
Wiring Pre-wired for all factory-available accessories
Outlets 1 - 12 V inside operator station
Charging System 120 Amp
Nominal Charge12 V
Battery950 CCA

OPERATOR STATION
Seat Adjustable air ride contour vinyl seat with built-in operator presence switch, lap bar and 2 in. ( 51 mm ) wide seat belt, operator manual pouch
Loader Control Right-hand electronic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. Loader speed is adjustable and selectable from iso or H control pattern
Drive Control : Left-hand electronic joystick controls machine speed and direction. Track speed is adjustable, includes a Creep Mode and is selectable from iso or H control pattern
Engine Speed Hand-operated throttle and foot throttle
7-Inch Color Machine Display Engine rpm, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules, DEF level, Adjustable controls, Adjustable hydraulic flows, winch (optional) control.
ROPS ISO 8082-Forestry
FOPS ISO 8083-Forestry
OPS ISO 8084-Forestry, bc wcb G603 - Window guards for forestry, bc wcb G604 - Light duty screen guards for off highway, bc wcb G608 - Heavy duty roof structure, iso 6683 - Seat belt anchors, cal osha 1596 - Seat belt, sae J2292 - Shoulder restraint (when equipped with 3 point options), iso 11839 - Forestry thrown object guard
Illumination 2 - Adjustable forward-facing led lights, 2 - Adjustable rear-facing led lights, 1 - Interior light, 2 - led side lights
Convenience 12 V power port
Standard Features Horn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lapbar, roof escape hatch, roof panel & rear cab windows. Adjustable joystick & arm rest positions, adjustable directional & air flow hvac vents, radio with bluetooth & usb, frameless front door, attachment control kit, wiper/washer, easy-off door
